Product Overview

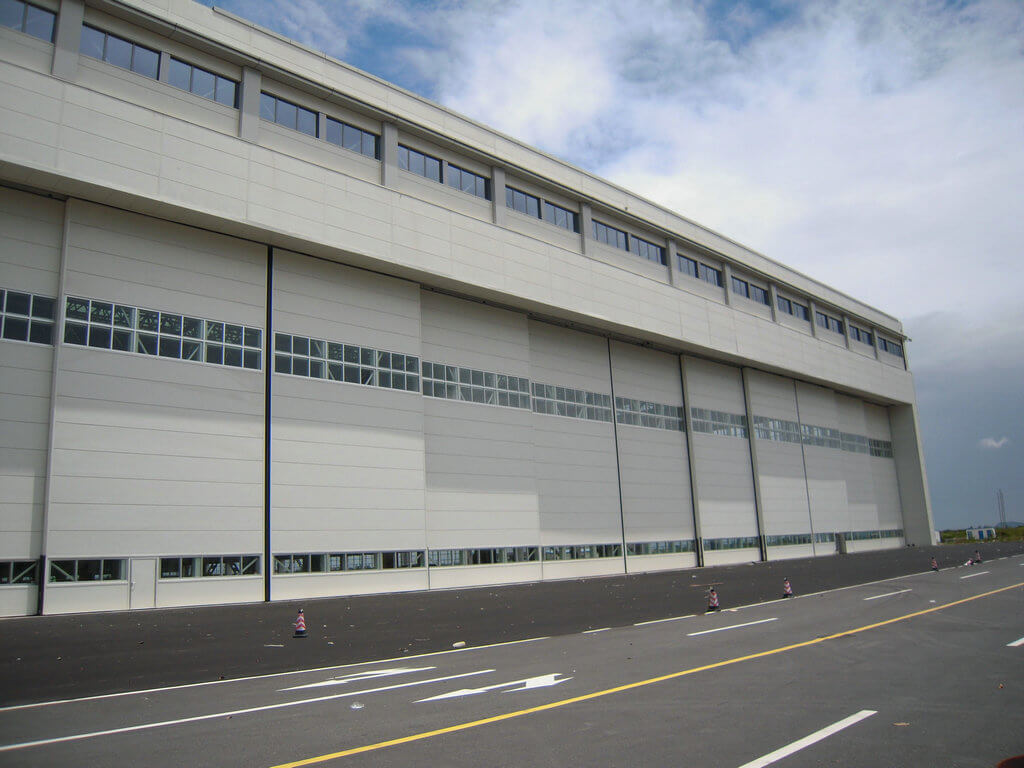

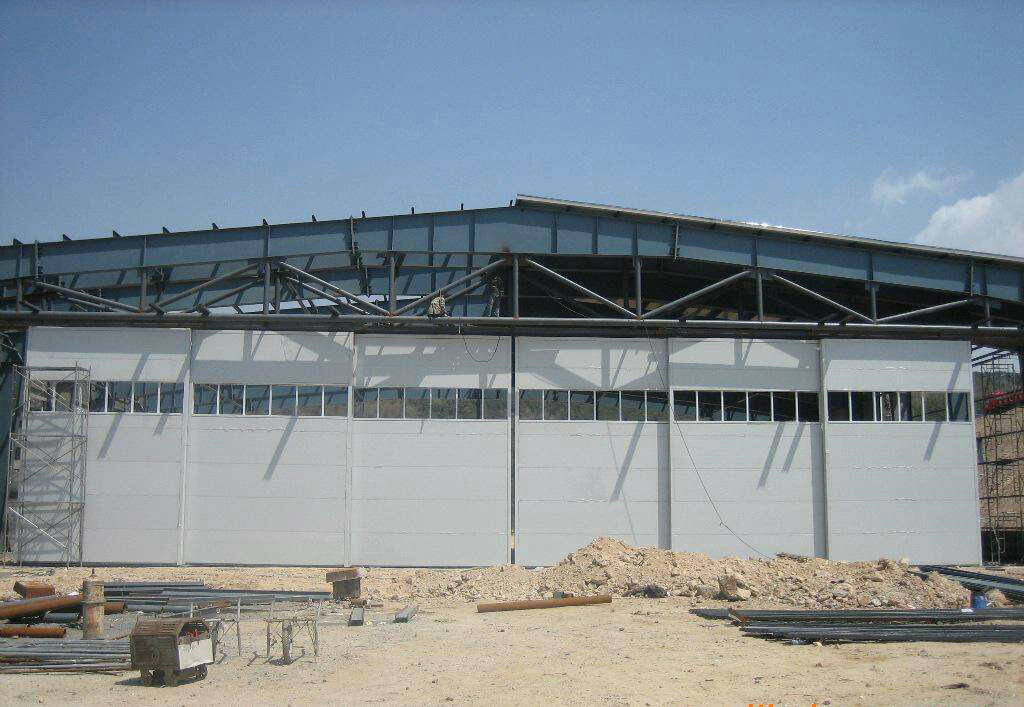

Qingdao XWELL Intelligent Door and Window Technology Co., Ltd. has launched a large hangar door for Jilin University of Aeronautics and Astronautics, a high-performance, intelligent large door system specially designed for the aviation field. This hangar door integrates both electric and manual operation methods, offering flexibility and convenience to meet different usage scenarios. Its unique design concept allows each door to move independently on the track, without a door storage area, with door panels serving as door storages for each other, realizing the full and partial opening functions of the large door, greatly facilitating the hangar management of the aviation college.

Main Product Features

Flexible and diverse operation methods

Qingdao Xinwei'er Intelligent Door and Window Technology Co., Ltd. offers large-scale machine storage doors that support both electric and manual opening methods. Electric operation is achieved through an advanced motor drive system, which is easy to operate and responds quickly; manual operation serves as a backup solution, ensuring normal use during power outages or emergencies, significantly enhancing the door's safety and reliability.

Independent Movement and Non-Storage Door Design

Each machine storage door can move independently on the track, this design eliminates the need for door storage space between doors, thereby saving valuable storage space. At the same time, the doors support and guide each other, ensuring a smooth and easy opening process when one door is opened.

Full and Partial Open Functions

The hangar door can be fully or partially opened according to actual needs. When fully opened, the hangar door is completely open, providing a spacious passage for the entry and exit of large aircraft or equipment; when partially opened, the opening angle can be adjusted as required, meeting the needs of ventilation, lighting, etc., while ensuring the safety and privacy within the hangar.

Two-way promotion and arbitrary position stop

Each hangar door can be pushed in both directions over the full length of the track, allowing operators to choose the direction according to actual needs, enhancing operational flexibility. Additionally, the hangar door can stop at any position, facilitating loading and unloading operations or equipment maintenance, etc.

Humanized personnel entry and exit design

The hangar doors are equipped with 2 small doors for personnel entry and exit, which are fitted with door closers to enable automatic opening and closing without manual operation, enhancing the efficiency of passage. The small doors are 2 meters in height and 1 meter in width, designed reasonably for easy carrying of items. Additionally, windows above 1.4 meters are designed to increase the transparency of the small doors, improving the lighting conditions inside the hangar.

High-quality skylight design

The hangar doors use LOW-E insulating tempered glass below 2.6 meters as the material for lighting windows. LOW-E glass boasts excellent heat insulation and light transmission properties, effectively blocking ultraviolet and infrared rays to protect the internal equipment from the damage of direct sunlight. At the same time, the hollow structure further enhances the glass's heat insulation performance and reduces the energy consumption inside the hangar. The tempering process strengthens the glass's strength and safety, ensuring that sharp fragments will not be produced even in case of breakage, thereby ensuring personnel safety.

Product Detailed Parameters

• BrandHangar door
• OriginQingdao, China
• FunctionElectric/Mechanical
• Some materialsLOW-E toughened glass (for light transmittance windows)
• Product ModelLarge hangar door
• Operation methodSupports both electric and manual opening methods
• Door leaf movement methodEach door can move independently on the track, without a door storage area, and the doors serve as door storages for each other.
• Opening methodFully or partially open, bidirectional push, can stop at any position.
• Staff in and out of the small doorTwo sets installed, equipped with automatic door closer, height 2 meters, width 1 meter, swing open type, with light windows designed above 1.4 meters.
• Lighting window material2.6 meters and below use LOW-E insulating tempered safety glass
• SafetyTempered glass shatters into non-sharp fragments, ensuring personnel safety.
• Insulation performanceLow-E glass and hollow structure effectively block ultraviolet and infrared rays, reducing energy consumption.

Application Scope

Large-scale hangar doors from Qingdao XWELL Intelligent Door and Window Technology Co., Ltd. are widely used in the aviation industry, particularly suitable for aviation colleges, airports, aircraft maintenance factories, and other locations requiring large hangar doors. With their flexible and diverse operation methods, independent movement and doorless zone design, as well as full and partial opening functions, these hangar doors meet the varied needs of different scenarios, providing strong support for the development of the aviation industry.

Frequently Asked Questions (FAQ page)

Q1: What operation modes does the machine door support?

A1: The machine room door supports both electric and manual operation modes. Electric operation is achieved through an advanced motor-driven system, offering ease of use; manual operation serves as a backup solution, ensuring normal use in case of emergencies.

Q2: How does the door panel of the hangar door move?

A2: Each machine storage door can move independently on the track. The non-storage door zone design eliminates the need for space reservation between door panels. The door panels serve as each other's storage, and when one door is open, the others act as its support and guide.

Q3: Can the hangar door be fully and partially opened?

A3: Yes, the hangar door can be fully or partially opened according to actual needs. Fully opened, it provides a spacious passage; partially opened, it meets the requirements of ventilation and lighting.

Q4: What are the characteristics of the personnel access door in the hangar?

A4: The hangar door is equipped with two small doors for personnel entry and exit, featuring a closer to enable automatic door opening and closing. The small doors are 2 meters in height and 1 meter in width, with a reasonable design. Light windows are designed above 1.4 meters to enhance transparency.

Q5: What material is used for the light-transmitting windows? What are the advantages?

A5: Windows below 2.6 meters use LOW-E insulated tempered safety glass. LOW-E glass boasts excellent heat insulation and light transmission properties; the hollow structure further enhances the heat insulation performance; and the tempering process strengthens the glass's strength and safety.

Q6: Where is this machine storage door suitable for?

A6: This hangar door is widely used in the aviation field, especially suitable for aviation colleges, airports, aircraft maintenance factories, and other places that require large hangar doors.

Q7: What should be noted for the maintenance and care of the hangar door?

A7: Regularly inspect the operation of the runway, motor, closer, and other components of the hangar door to ensure there is no abnormal wear or loosening. At the same time, regularly clean the skylight to maintain its transparency. Under adverse weather conditions, strengthen the inspection and maintenance of the hangar door to ensure its normal operation.

Q8: How should you handle a malfunctioning hangar door?

A8: If there is a malfunction with the hangar door, it should be immediately stopped for use and a professional maintenance team should be contacted for inspection. Do not disassemble or repair it yourself to avoid causing more severe damage or safety hazards.
